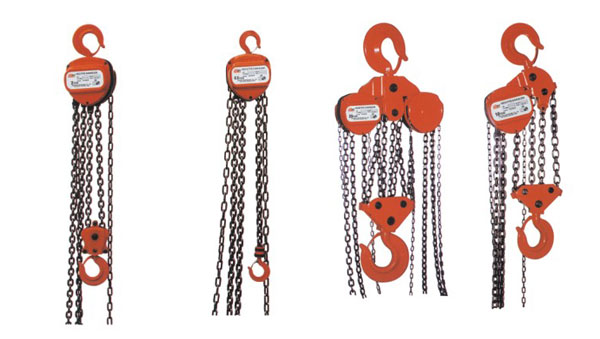

| 葫芦--NB-C 系列 |
|
 产品详细说明 |
|
|
NB-C Series
1KG=2.2LB 1INCH=25.4MM
| 型号 |
|
|
NB-C1/2 |
NB-C1 |
NB-C1 1/2 |
NB-C2D |
NB-C2 |
NB-C3 |
NB-C5 |
NB-C10 |
NB-C20 |
| 额定负载 |
tons |
|
0.5 |
1 |
1.5 |
2 |
2 |
3 |
5 |
10 |
20 |
| 标准提升 |
m |
|
2.5 |
2.5 |
2.5 |
3 |
2.5 |
3 |
3 |
3 |
3 |
| 运行测试时负载 |
t |
|
0.75 |
1.5 |
2.25 |
3 |
3 |
4.5 |
6.25 |
12.5 |
25 |
| 两钩间最小距离 |
mm |
|
258 |
274 |
347 |
444 |
396 |
486 |
616 |
700 |
1000 |
| 满载时手链拉力 |
N |
|
221 |
304 |
343 |
294 |
314 |
343 |
382 |
392 |
392 |
| 起重链行数 |
|
|
1 |
1 |
1 |
1 |
2 |
2 |
2 |
4 |
8 |
| 起重链条圆钢直径 |
mm |
|
6 |
6 |
8 |
10 |
6 |
8 |
10 |
10 |
10 |
| 尺寸 |
mm |
A |
125 |
147 |
183 |
215 |
147 |
183 |
215 |
360.5 |
585 |
| B |
111 |
126 |
141 |
163 |
126 |
141 |
163 |
163 |
191 |
| C |
24 |
28 |
34 |
38 |
34 |
38 |
48 |
64 |
82 |
| D |
134 |
154 |
192 |
224 |
154 |
192 |
224 |
224 |
224 |
| 净重 |
kg |
|
8 |
10 |
16 |
27 |
14 |
24 |
36 |
68 |
156 |
| 毛重 |
kg |
|
10 |
13 |
20 |
36 |
17 |
28 |
45 |
83 |
194 |
| 装箱尺寸(LxWxk) |
cm |
|
28x21 x17 |
30x24 x18 |
34x29 x20 |
45x39 x24 |
33x28 x19 |
38x33 x20 |
45x39 x24 |
55x51 x29 |
70x46 x75 |
| 起重高度每增加1米所增加的重量 |
kg |
|
1.7 |
1.7 |
2.3 |
5.3 |
2.5 |
3.7 |
5.3 |
9.7 |
19.4 | | |
|
|
| |
|
|
| | |
|
 | |
